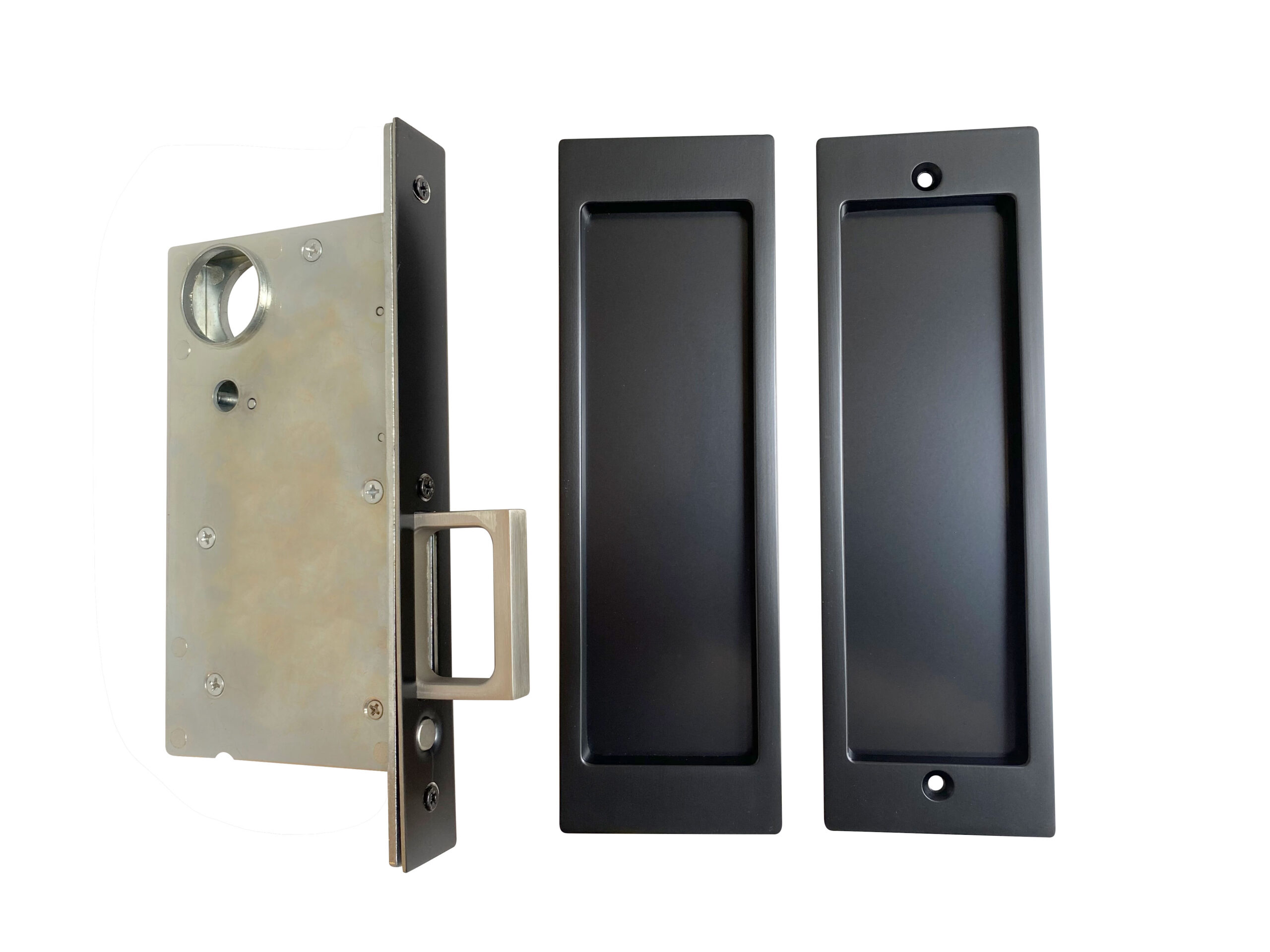

Mortise Pocket Doorset Lock with Pull Edge

This sliding door hardware will help you to create a home which completely pulls together – with grace and style reflected in the smallest details.

It can be used on any pocket door, sliding door/wardrobe, any living space and delivers quality and look you need to coordinate every element in your home.

AVAILABLE in Passage and Privacy functions.

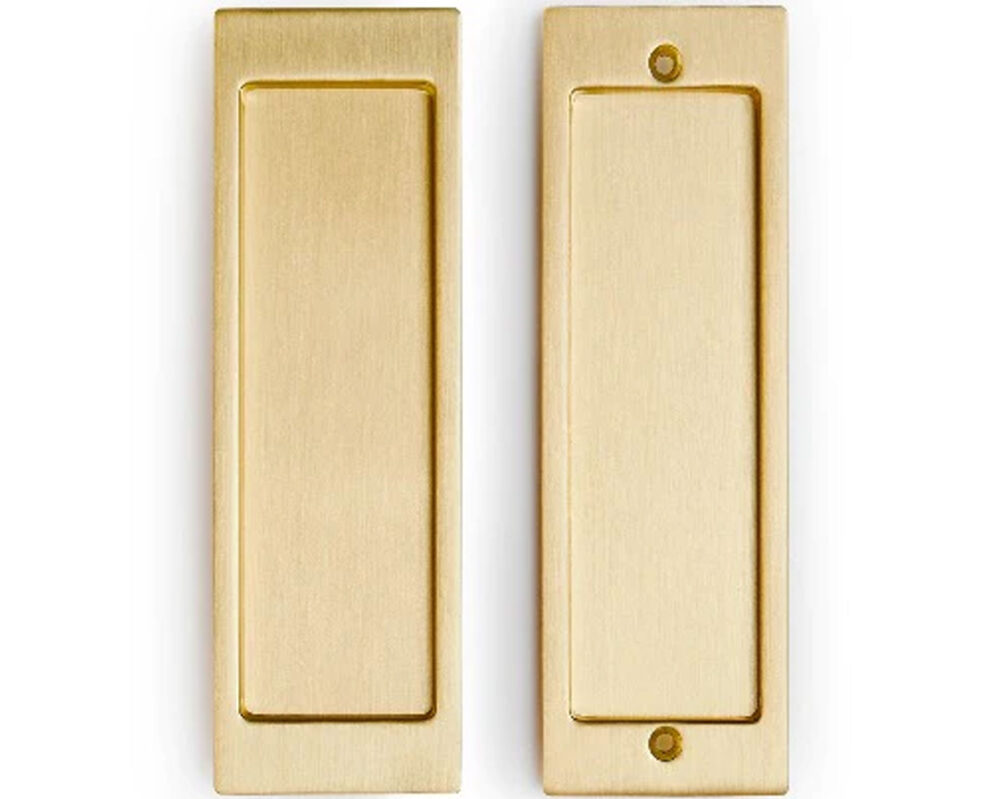

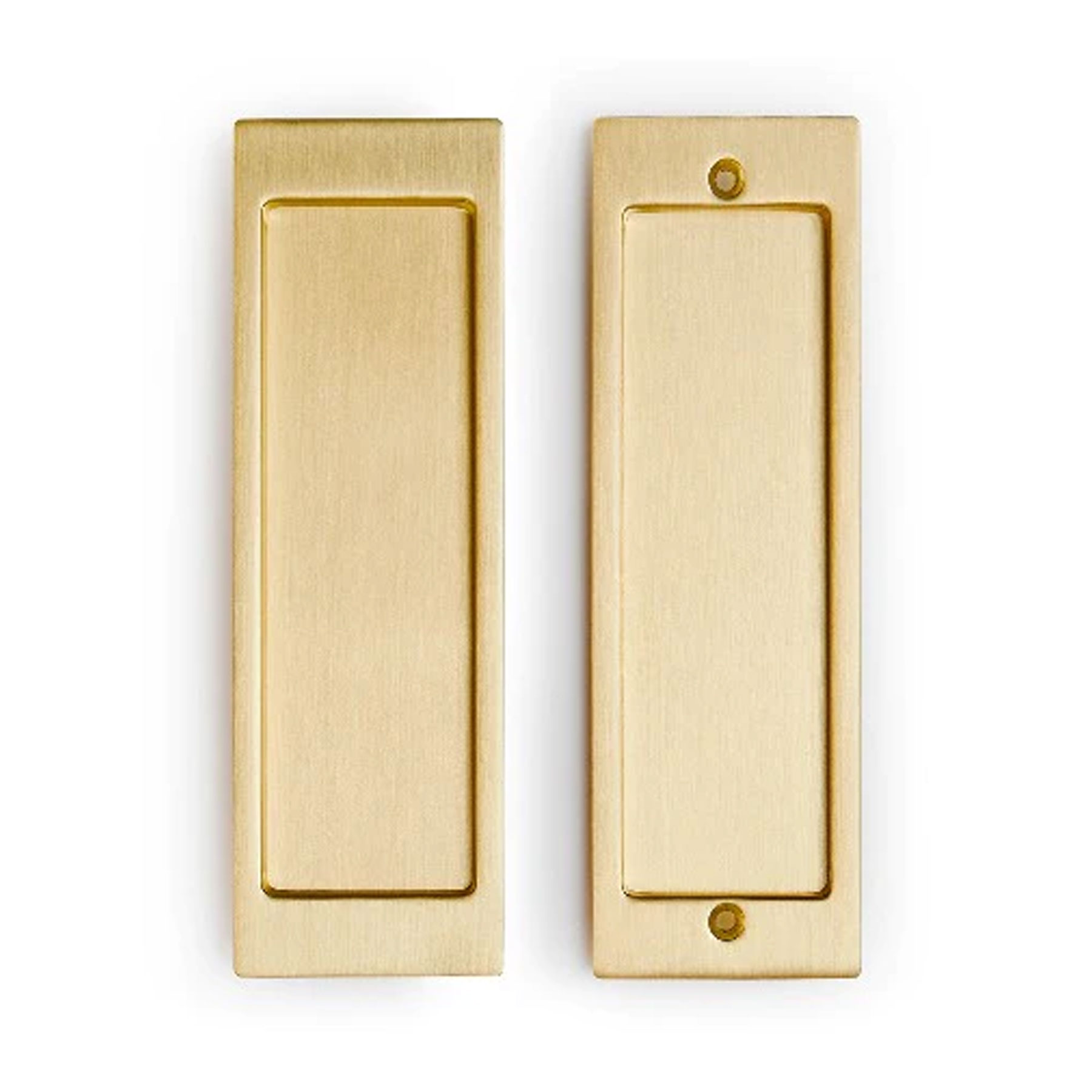

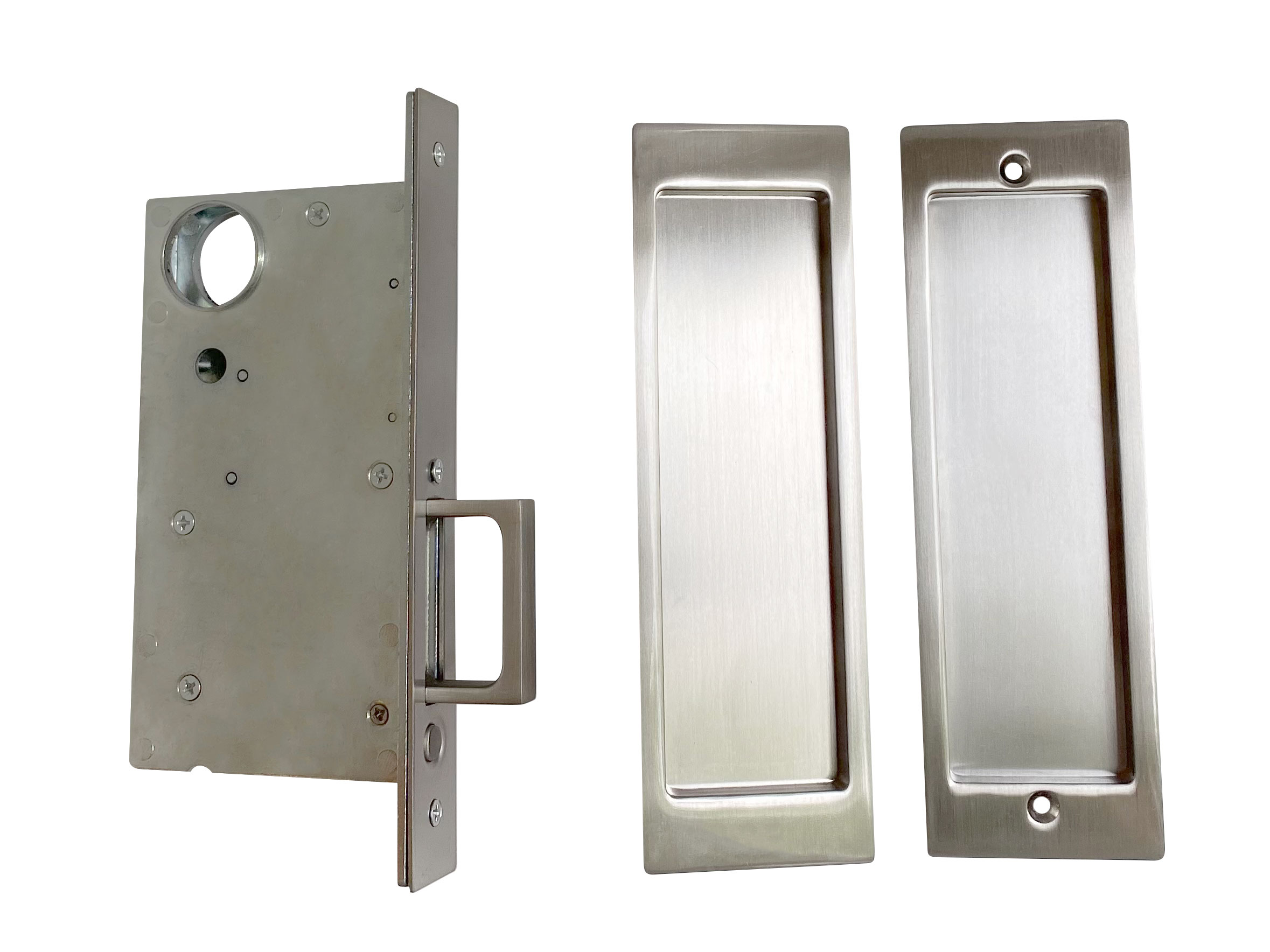

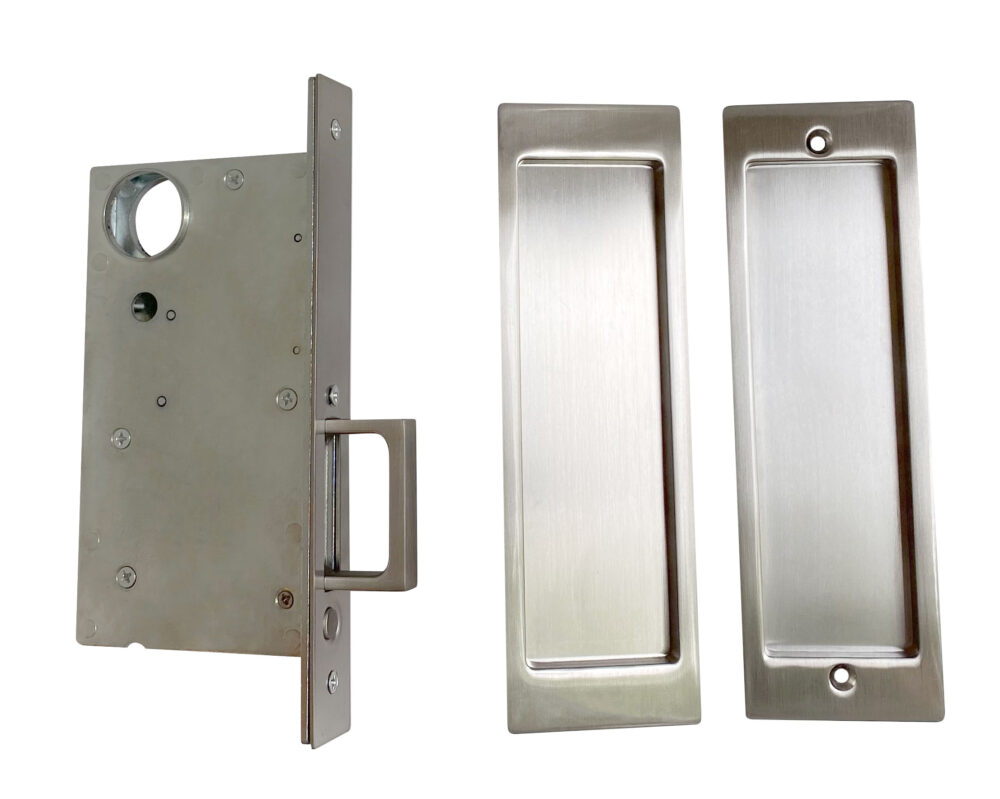

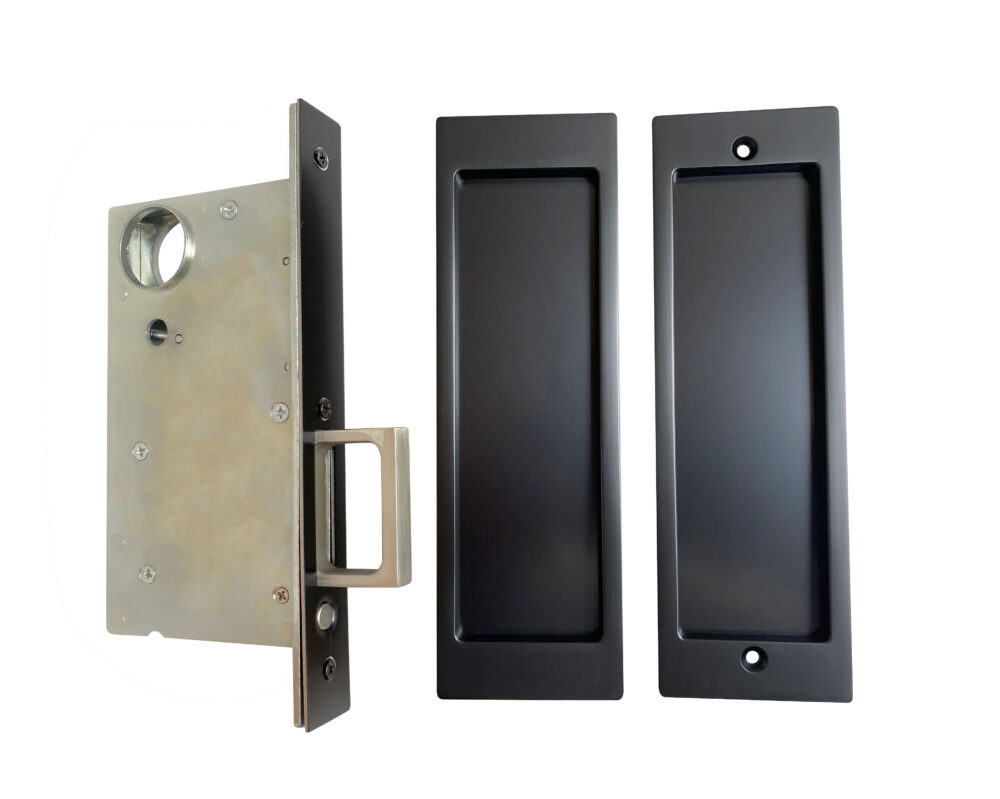

Passage flush pull for sliding doors has no locking function.

These pulls are ideal for hallways or closets where a lock is not necessary.

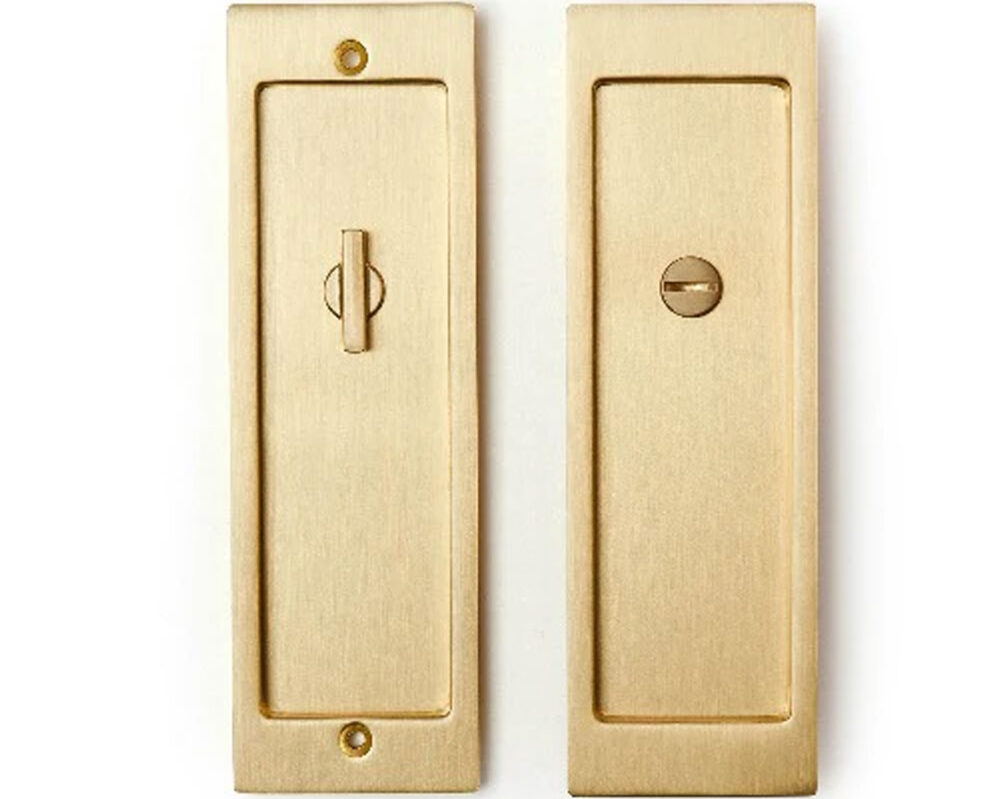

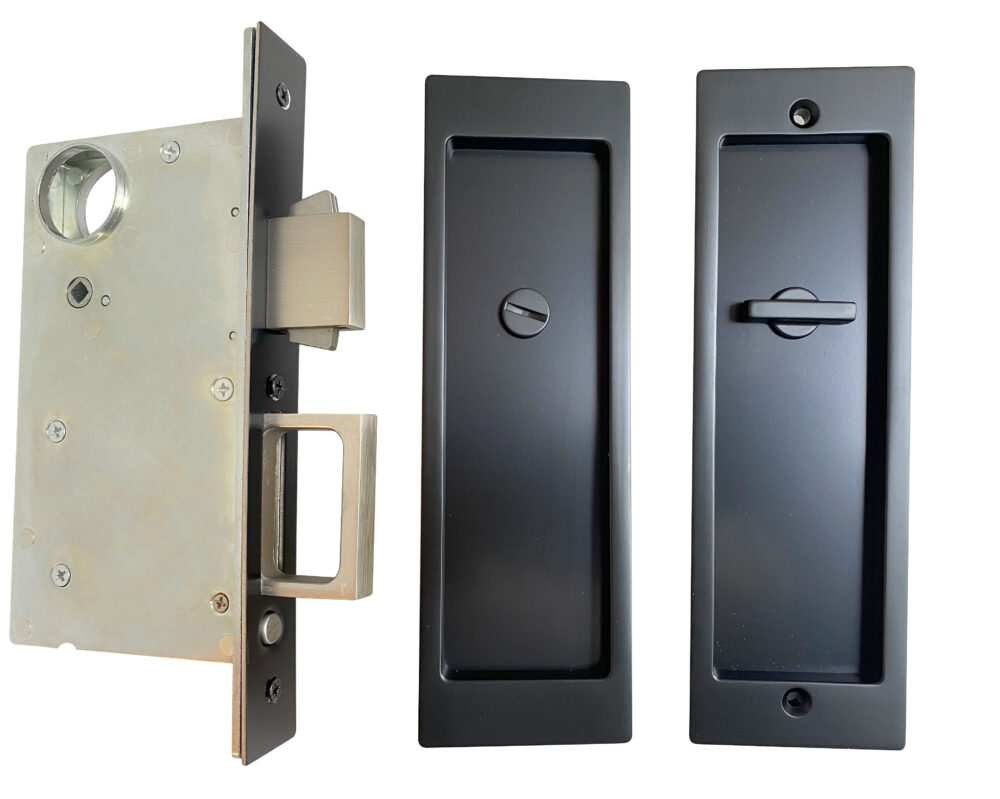

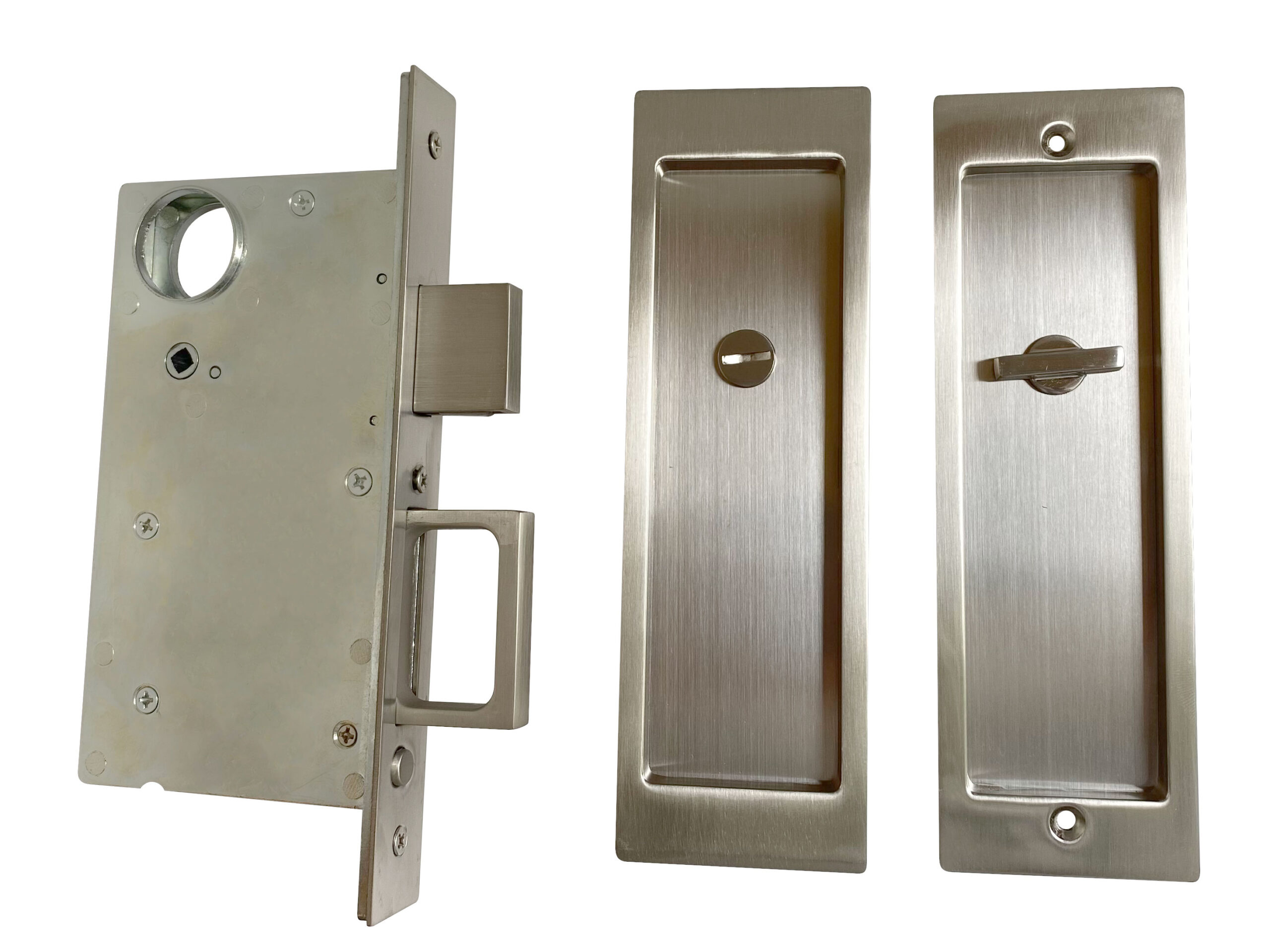

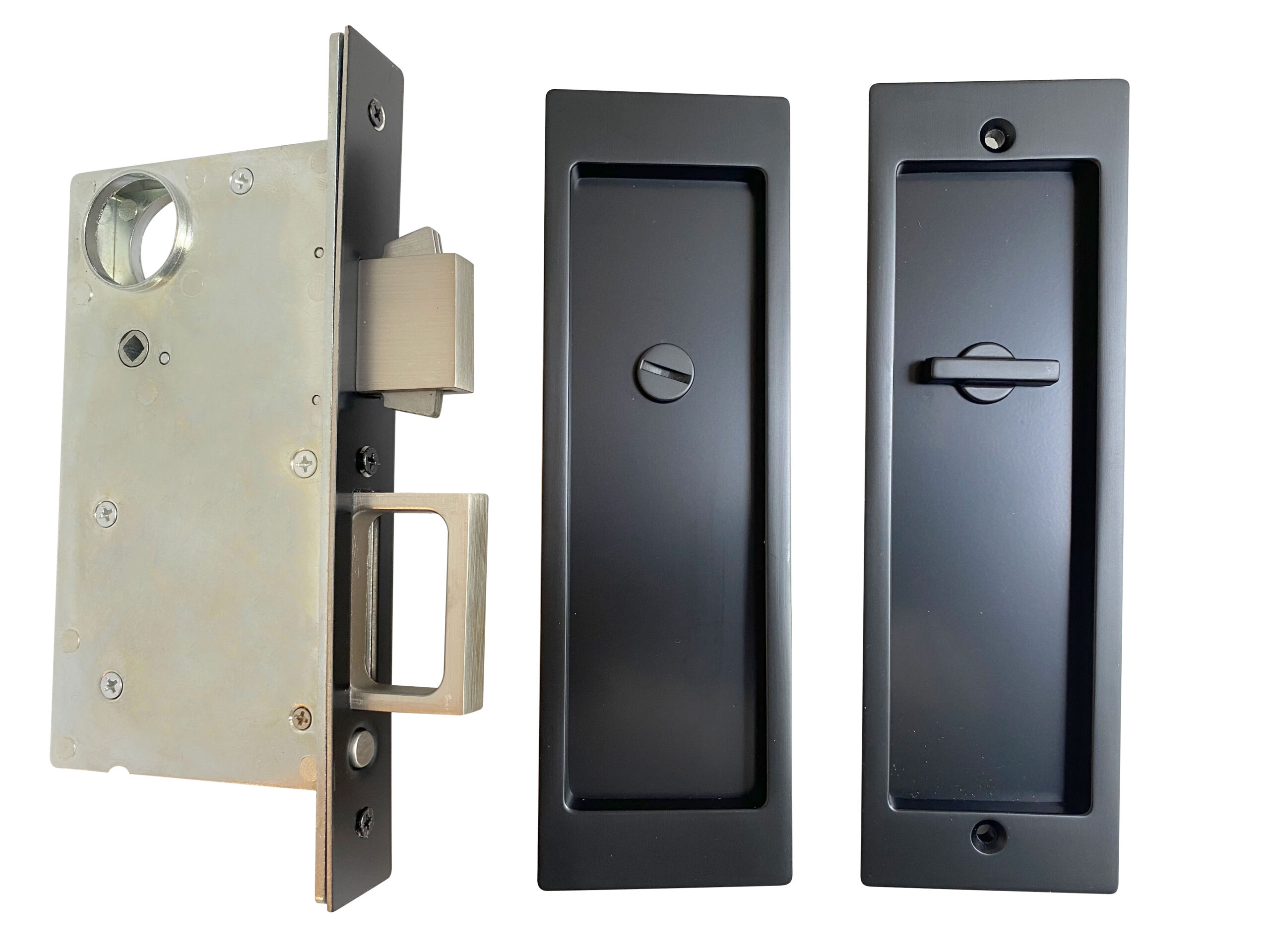

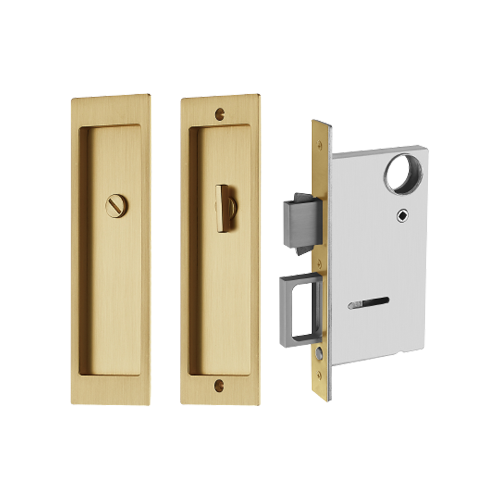

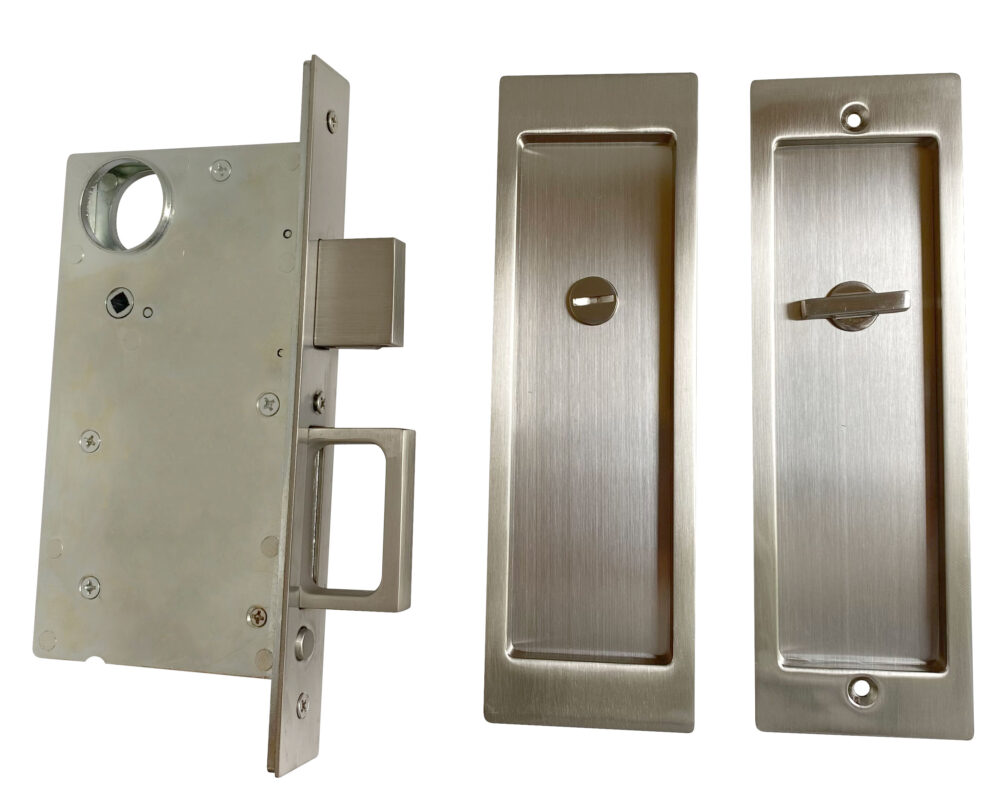

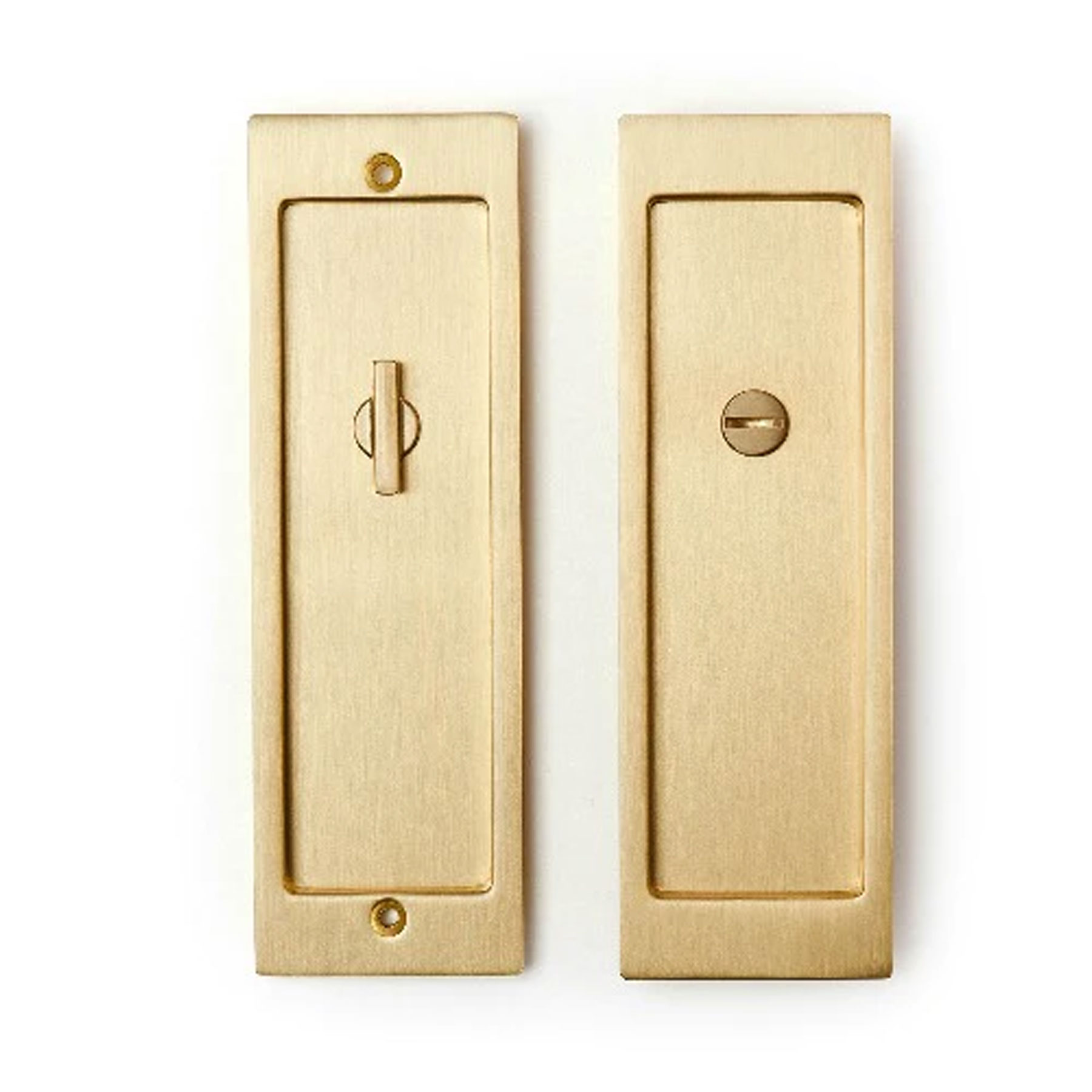

Privacy flush pull for sliding doors is locked from the interior using a thumb-turn lock on the interior pull and with a coin turn to unlock the door from the outside.                                                                                                      Privacy pulls are ideal for bathrooms, bedrooms, or anywhere a locking door is desired.

*IMPORTANT:

This sliding door pull requires CUSTOM door prep. as it will not fit a standard pre-cut door. Template is provided.

FINISHES: Satin Nickel, Black, Satin Brass

Description:

• For use on single or double doors

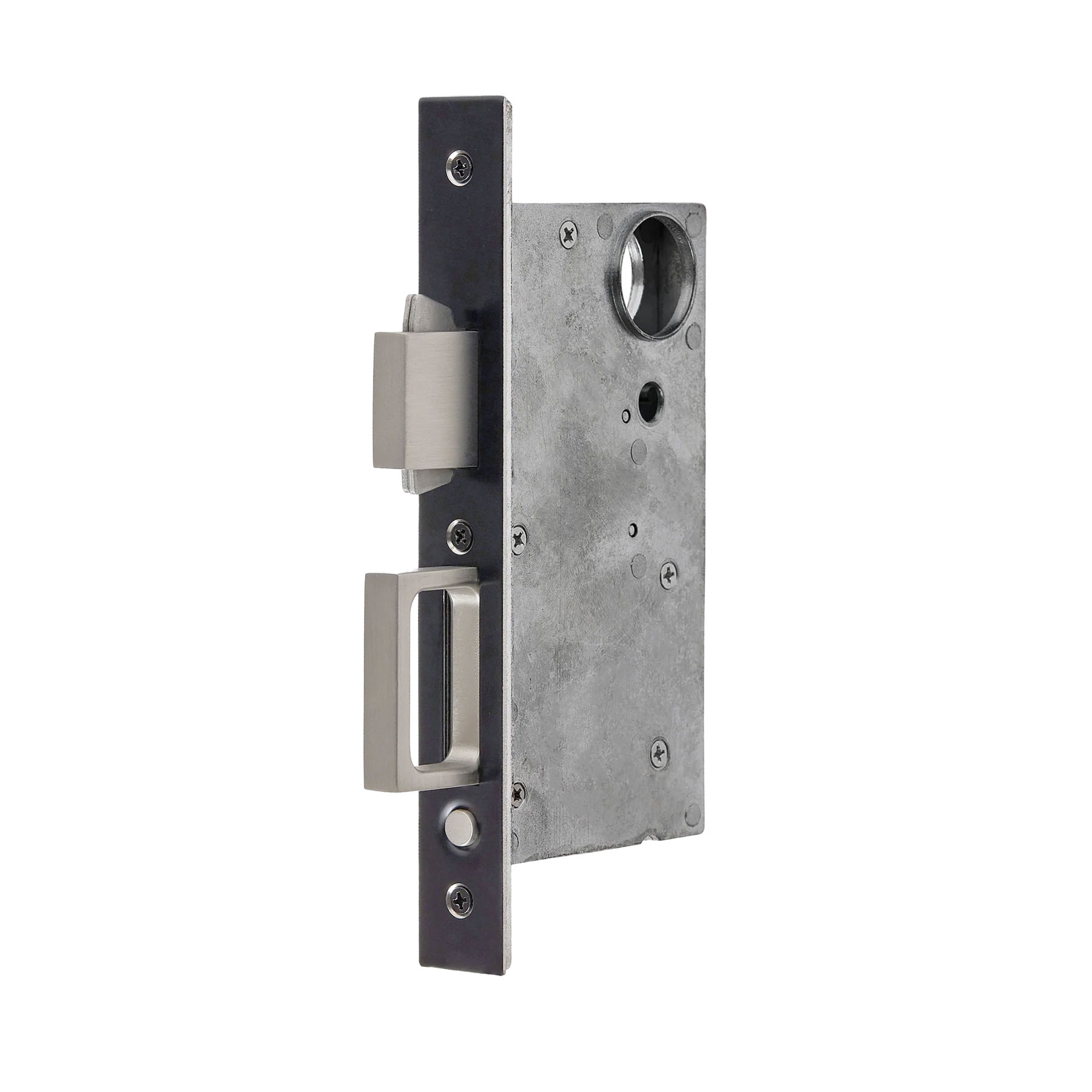

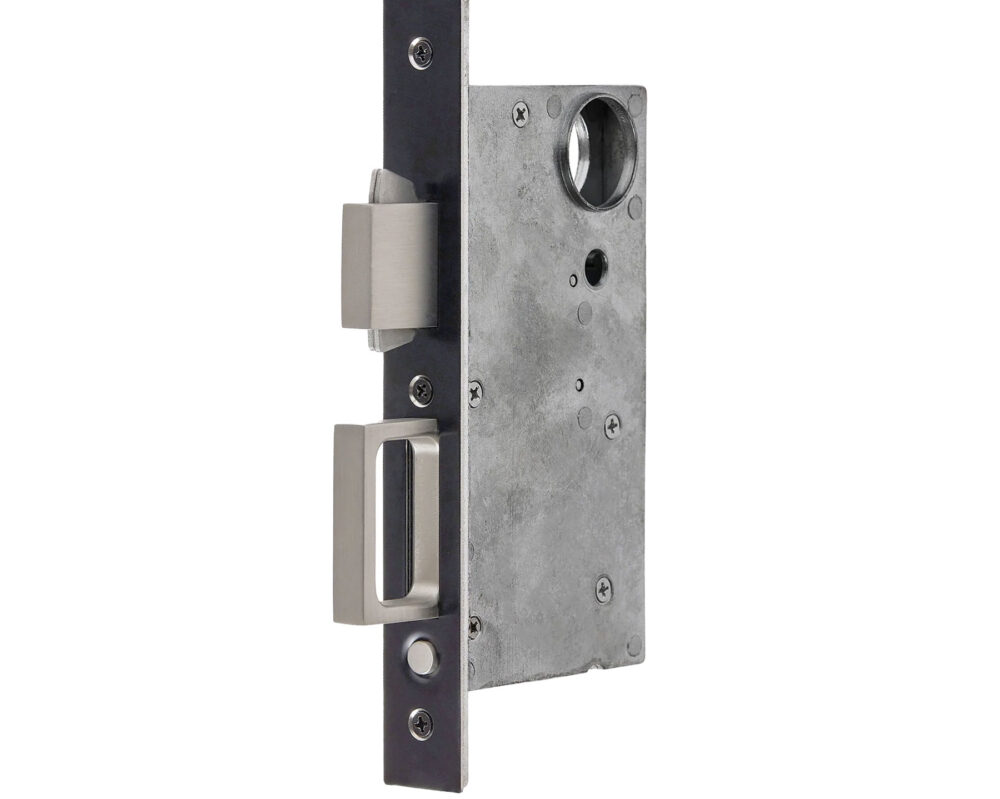

• Mortise mechanism has spring loaded an edge pull
• An edge pull pops out by pressing the button located at the bottom
• Door thickness: 1 3/8″ (35mm) to 2″ (51mm)
• Compatible with left-hand and right-hand doors
• Mounting hardware is included

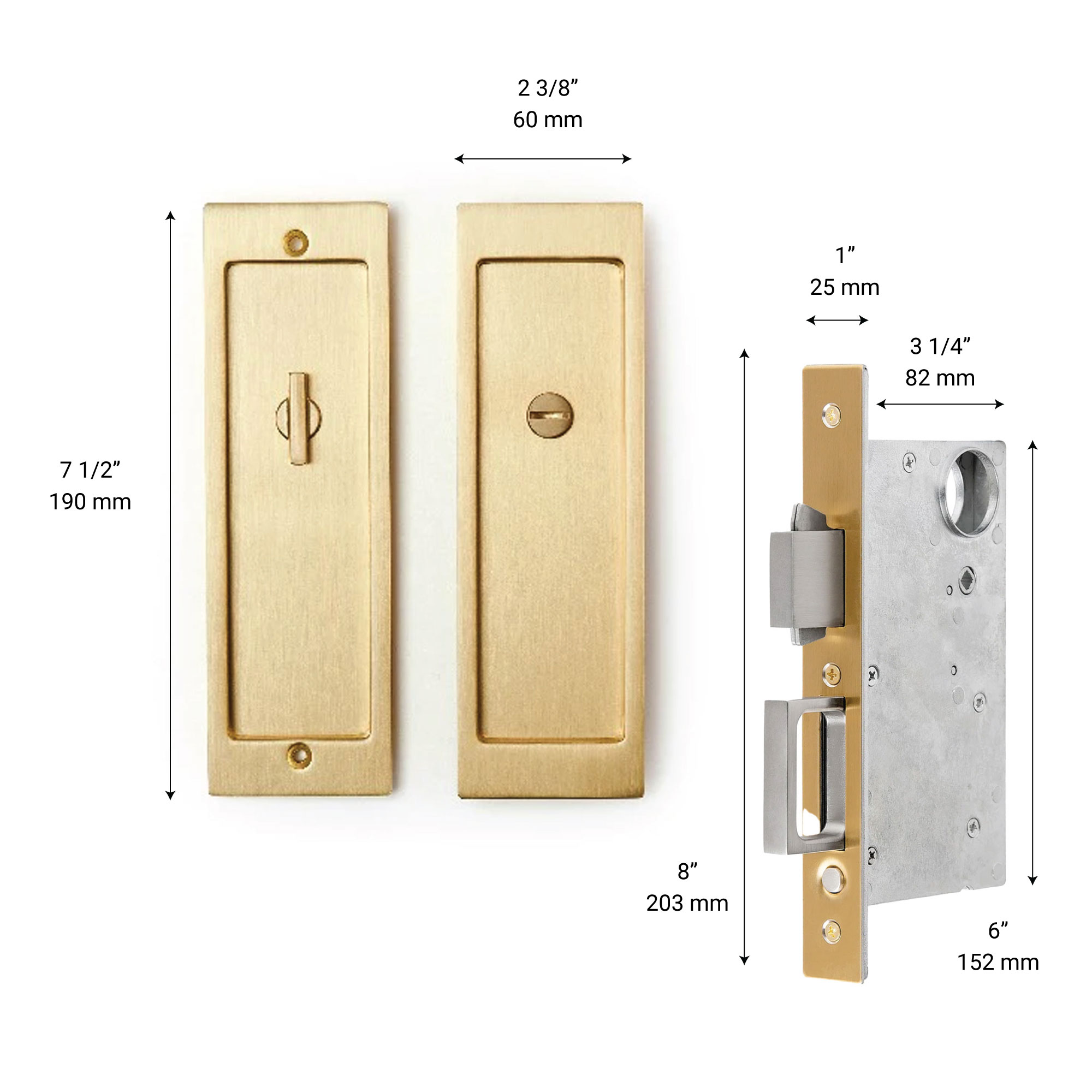

Dimensions:

• Pull: Height 7 1/2″ (190mm) X Width 2 3/8″ (60mm)
• Mortise mechanism: Height 6″ (152mm) X Width 3 1/4″ (82 mm)
• Mortise faceplate: Height 8″ (203mm) X Width 1″ (25mm)

Mortise pocket lock with edge pull PDF

scheme_26_09_22 (1)
